Picture your seedlings thriving in February whilst snow blankets your neighbour’s garden – that’s the magic of a well-crafted cold frame. This simple wooden structure acts as a miniature greenhouse, trapping warm air and protecting your precious plants from harsh winter elements.
You don’t need advanced carpentry skills or expensive materials to build one. With basic 2×2 wood pieces, clear plastic sheeting, and a few hours of your time, you’ll create a game-changing tool that extends your growing season by months. Whether you’re nurturing tender perennials through winter or getting an early start on spring vegetables, a cold frame offers the perfect microclimate for year-round gardening success.
Ready to transform your gardening capabilities with this budget-friendly project? Let’s jump into the step-by-step process that’ll have you harvesting fresh produce when others are still waiting for spring.

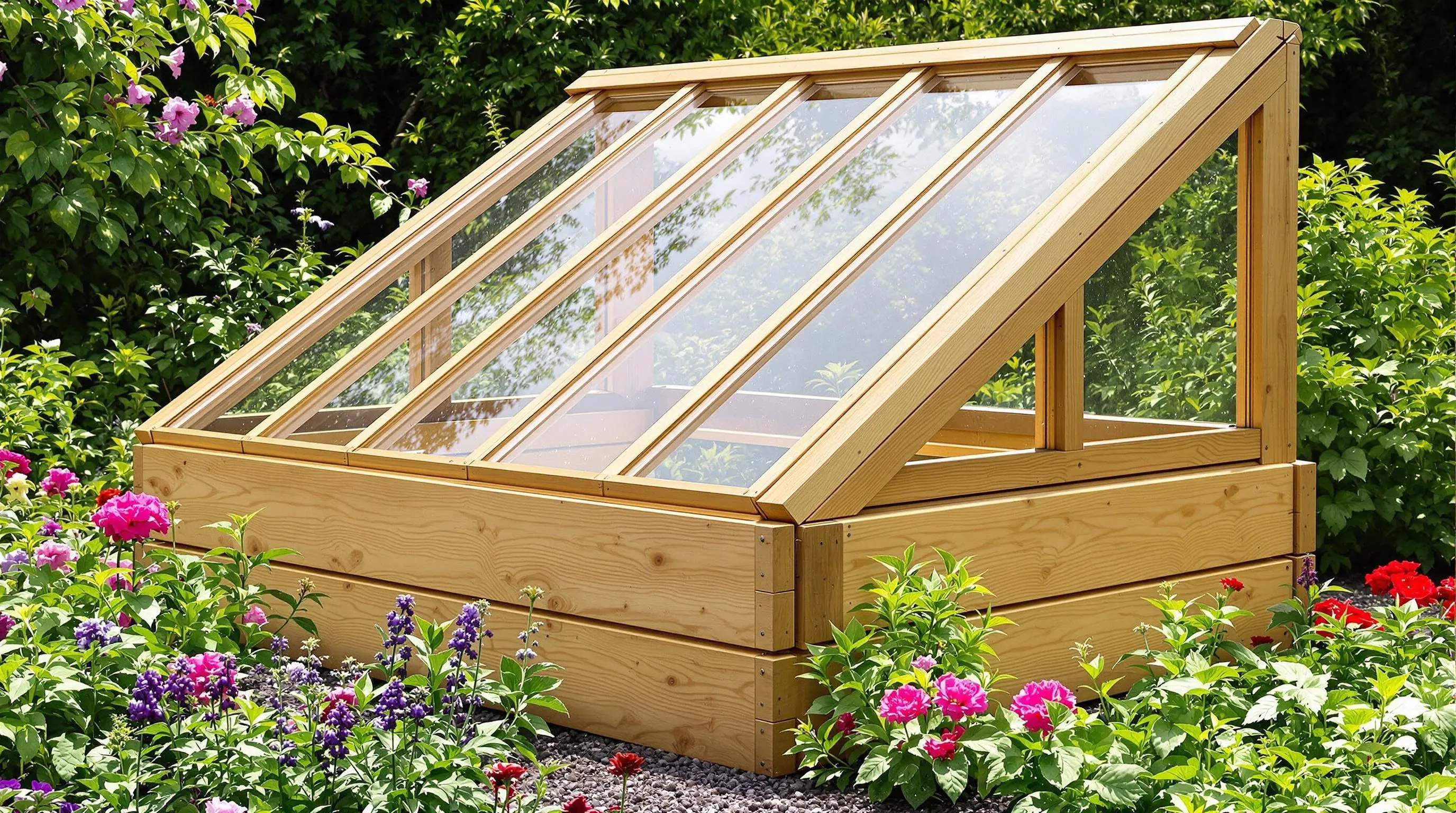

A cold frame is a 5-sided wooden structure with a transparent sloped lid that sits over plants during colder months. The structure captures sunlight through its angled roof and traps warm air inside, creating a microclimate that protects plants from harsh weather conditions like snow, sleet, and ice.
Cold frames function as miniature greenhouses but cost significantly less to build and maintain. The transparent lid allows light to enter whilst the wooden sides provide insulation. The angled roof prevents snow accumulation and directs rainwater away from your plants.
Extend your growing season by 6-8 weeks in both spring and autumn. You can start seeds earlier in spring and continue harvesting fresh vegetables well into winter months.
Perfect for small gardens where full-sized greenhouses prove impractical. Cold frames require minimal space and fit into compact gardening areas.
Protect tender plants during winter dormancy periods. Hardy perennials, herbs like cress and chives, and root vegetables such as beetroot and carrots thrive in cold frame protection.
Improve plant resilience by hardening seedlings gradually. Plants grown in cold frames develop stronger root systems and better cold tolerance compared to indoor-grown seedlings.
Cost-effective solution requiring £60-100 in materials versus £500-2000 for greenhouse installation. Basic carpentry skills and common tools complete the project.
Position your cold frame in the sunniest area of your garden with the sloped roof facing south. This orientation maximises light exposure and heat capture during daylight hours.
The structure works best when placed over raised beds or directly on garden soil. Summer usage accommodates heavy feeders like tomatoes and peppers, whilst winter months suit leafy greens and root vegetable storage.
Cold frames excel at protecting cool-season crops including lettuce, spinach, and radishes. These structures maintain soil temperatures 10-15°F warmer than ambient air temperature, enabling continuous winter harvests in most UK climates.
Building your cold frame requires gathering specific materials and tools before you begin construction. This preparation phase determines the quality and longevity of your finished structure.
Pressure-treated lumber forms the backbone of your cold frame construction. Purchase wooden boards for the frame’s sides and back panels, ensuring they measure at least 150mm x 25mm for adequate strength. Squared timbers create the structural feet and internal frame supports – these pieces prevent ground contact and improve drainage.
Deck boards work exceptionally well for the front and back assemblies. Cut three 12-foot boards and five 4-foot sections for the main structure. Larch boards offer superior durability when pressure-impregnated, lasting 10-15 years in outdoor conditions compared to untreated pine’s 3-5 year lifespan.
Scrap wood provides an economical alternative – recycle cedar, redwood, or appropriately treated lumber you already own. Avoid wood treated with creosote or pentachlorophenol, as these toxins accumulate in the frame and contaminate soil.
Decking screws in two sizes complete the assembly – 63mm screws for the frame construction and 32mm screws for attaching glazing materials. Purchase galvanised or stainless steel screws to prevent rust damage in wet conditions.
Hinges enable the glazing panel to open for ventilation and plant access. Choose two heavy-duty hinges rated for outdoor use, preferably brass or galvanised steel. Piano hinges distribute weight evenly across the entire opening mechanism.
Metal brackets reinforce corner joints and prevent frame warping. L-shaped brackets measuring 75mm x 75mm provide adequate support for most cold frame designs. Additional hardware includes handles for easy lid operation and chain stays to limit opening angles.
Reclaimed windows offer the most economical glazing solution. Standard window sizes measuring 115cm x 130cm fit most cold frame designs perfectly. Ensure glass panes remain intact without cracks that compromise insulation.
Polycarbonate sheets provide superior insulation properties compared to standard glass. Twin-wall polycarbonate sheets measuring 6mm thick offer excellent thermal retention whilst remaining lightweight and shatter-resistant.
Corrugated plastic panels create budget-friendly alternatives to glass or polycarbonate. These panels transmit 85% of available light whilst costing 60% less than equivalent glass installations. Acrylic sheets also work effectively, though they scratch more easily than polycarbonate options.
Cordless drill with wood drill bits handles all screw insertion and pilot hole creation. Choose a drill with minimum 18V power for driving screws through thick timber without stalling.
Jigsaw or handsaw cuts wood materials to required dimensions. Jigsaws excel at creating angled cuts for the sloped lid design. Hand saws work adequately for straight cuts but require more physical effort.
Measuring tools ensure accurate dimensions throughout construction. Use a tape measure for long measurements and a square for checking corner angles. Safety equipment includes goggles to protect eyes from wood chips and dust during cutting operations.
Hammer drives nails and adjusts components during assembly. Choose a claw hammer weighing 450-550g for optimal balance between power and control during construction tasks.
Position your cold frame in the optimal spot to maximise plant growth and extend your growing season. The right location combines three critical factors: sunlight exposure, drainage conditions, and practical accessibility.
South-facing exposure provides maximum sunlight capture for your cold frame throughout the day. Place your structure where it receives 6-8 hours of direct sunlight daily during winter months when the sun sits lower in the sky.
Choose a spot that remains sunny between 10am and 3pm when solar radiation peaks. Avoid locations shaded by buildings, fences, or evergreen trees that block winter sun. Deciduous trees work better since they shed leaves and allow winter light through.
Position the sloped lid facing south at a 30-45 degree angle to capture the most solar energy. This angle mirrors the sun’s path during late autumn and early spring when your cold frame works hardest.
Consider how shadows move across your garden during different seasons. A location sunny in summer might become shaded in winter when the sun tracks lower across the sky. Test potential spots by observing shadow patterns on a clear winter day.
Well-draining soil prevents waterlogging that kills plant roots and damages your cold frame’s wooden structure. Avoid low-lying areas where water collects after rain or snow.
Test drainage by digging a hole 30cm deep and filling it with water. The water should drain within 24 hours for adequate drainage. Clay soils that hold water require amendments like coarse sand or gravel beneath your cold frame.
Slope the ground slightly away from your cold frame’s back panel to direct water runoff. A 2-3% gradient (2-3cm drop per metre) prevents water pooling around the structure.
Add a foundation layer of crushed stone or gravel if your chosen spot has drainage issues. This 10cm deep base elevates your cold frame above soggy conditions while improving stability.
Position your cold frame within 10 metres of your house for easy daily monitoring and maintenance. You’ll check ventilation, water plants, and harvest crops regularly throughout the growing season.
Place the structure 2-3 metres from a south-facing wall or fence to gain reflected heat and wind protection. Walls that receive afternoon sun warm up during the day and radiate heat back to your cold frame during cold nights.
Create a clear pathway to your cold frame using stepping stones or gravel. You’ll access it frequently during wet weather when grass paths become muddy and slippery.
Avoid windy locations that expose your cold frame to harsh northerly winds. Strong winds cool the structure and can damage the hinged lid. Natural windbreaks like shrubs or existing garden structures provide protection without blocking essential sunlight.
Ensure your chosen spot allows the lid to open fully without hitting obstacles. Most cold frame lids open backwards, so leave 1 metre clearance behind the structure for maintenance access.
Planning your cold frame design requires careful consideration of both size and angle to maximise growing potential and create optimal growing conditions for your plants.
Standard cold frame dimensions measure 150 x 70 cm, providing adequate space for most gardening applications while remaining manageable for construction and maintenance. These measurements accommodate 12-15 seed trays or provide growing space for approximately 20-25 individual plants.
Depth requirements vary between 20-30 cm depending on your intended crops and root development needs. Shallow-rooted vegetables like lettuce and radishes thrive in 20 cm depth, whilst deeper-rooted plants such as carrots and beetroot require 25-30 cm depth for proper development.
Consider your available garden space and growing objectives when determining final dimensions. Larger cold frames measuring 180 x 90 cm suit gardeners with extensive growing plans, whilst compact versions at 120 x 60 cm work perfectly for small gardens or balcony spaces.
Frame height calculations depend on your tallest intended plants. Standard designs feature 30 cm back height tapering to 20 cm front height, creating the necessary slope whilst providing adequate headroom for most vegetables and herbs.
Account for accessibility when planning dimensions. Arms reach comfortably extends 60 cm, meaning cold frames wider than 120 cm require access from both sides for practical maintenance and harvesting.
The optimal lid angle measures 30 degrees to ensure proper water drainage whilst maximising solar gain during winter months when sun angles remain low. This specific angle prevents snow accumulation and directs rainwater away from the growing area.
Angle calculations require measuring the difference between back and front panel heights, then dividing by the frame depth. For a 150 cm deep frame with 30 cm back height and 20 cm front height, the calculation produces: (30-20) ÷ 150 = 0.067, equivalent to approximately 30 degrees.
Southern exposure angles capture maximum sunlight throughout the day, particularly crucial during winter months when daylight hours remain limited. Position your angled lid to face south or south-west for optimal solar collection.
Steeper angles exceeding 35 degrees create excessive water runoff and reduce internal growing space, whilst angles below 25 degrees allow snow accumulation and reduce drainage efficiency. Maintaining the 30-degree standard ensures balanced performance across all weather conditions.
Ventilation considerations factor into angle planning, as the sloped design creates natural air circulation when the lid opens partially. The 30-degree angle allows controlled ventilation whilst maintaining structural integrity during windy conditions.
Building your cold frame requires precise cutting and systematic assembly to create a durable structure that lasts multiple growing seasons.
Cut your timber to exact measurements before beginning assembly to ensure proper alignment. Measure twice and cut once to avoid material waste and construction delays.
Start by cutting three pieces of deck board to 4-foot lengths for the back panel. Cut two additional pieces to the same length for the front panel. These boards form the primary structural elements of your cold frame walls.
Next, cut five pieces to 22-inch lengths from your remaining deck boards. These shorter pieces create the side panels and provide structural support throughout the frame.
Prepare your internal supports by cutting pressure-treated 2×4 lumber into specific lengths. Cut two pieces to 15 inches for the back panel supports and two pieces to 11 inches for the front panel supports. These internal braces distribute weight evenly across the frame structure.
Set aside any remaining timber pieces for later use in lid construction and ventilation arms.
Assemble the back panel first by laying three 4-foot deck boards flat on your work surface. Push the boards tightly together to eliminate gaps between adjacent pieces.
Position the 15-inch support pieces beneath the deck boards at each end. Space these supports 1 inch from the board ends and align them flush with the bottom edge. This positioning prevents water accumulation and ensures structural stability.
Secure the assembly using 2-inch exterior wood screws. Drive at least two screws per board through the deck planks into the underlying supports. Pre-drill holes to prevent wood splitting and ensure clean connections.
Construct the front panel using the same technique with two 4-foot deck boards and the 11-inch support pieces. The shorter supports create the necessary slope for your cold frame lid angle.
Create the distinctive sloped profile by cutting one side board diagonally from the back height to the front height. This angled cut ensures proper water drainage and maximises solar heat collection.
Position the triangular piece at the top of each side wall assembly. The slope moves downward from back to front, matching the height difference between your front and back panels.
Attach the side walls to the front and back panels using 2½-inch decking screws. Drive screws through the side panels into the internal frame supports for maximum holding power.
Check each corner joint for square alignment using a builder’s square. Adjust positioning as needed before fully tightening all screws.
Build a lightweight lid frame using 2×2 timber pieces cut to match your cold frame dimensions. The frame perimeter measures 4 feet by 2 feet to align with your base structure.
Join the frame corners using half-lap joints or simple butt joints reinforced with metal brackets. Half-lap joints provide superior strength but require more precise cutting.
Test-fit the lid frame on your assembled base before proceeding to glazing installation. The frame edges should align evenly with the back and side walls when closed.
Sand all frame surfaces smooth to prevent splinters when handling the lid during daily operations.
Secure your chosen glazing material to the lid frame using appropriate fasteners. Polycarbonate sheets require specific screws with sealing washers to prevent leaks.
For glass installations, create a rabbet groove along the frame edges to seat the glazing properly. Apply glazing compound around the glass perimeter for weatherproof sealing.
When using corrugated plastic panels, overlap joints by one corrugation and seal with compatible tape or sealant. This prevents wind-driven rain from entering the frame interior.
Leave small drainage holes at the lowest corners of the glazing installation to allow condensation escape.
Mount two sturdy hinges along the back edge of your cold frame base. Position hinges 6 inches from each corner for balanced lid support and smooth operation.
Attach the hinges to both the base frame and lid frame using the provided screws. Test the hinge action before final tightening to ensure smooth lid movement.
Create two support arms from remaining 2×2 timber. Cut one arm to 18 inches for full opening access and another to 6 inches for partial ventilation opening.
Mount each support arm on opposite sides of the frame interior using pivot screws. These arms swing up to hold the lid at predetermined angles for plant access and temperature control.
Apply exterior wood finish to all timber surfaces for weather protection. Remove the glazed lid during finishing to ensure complete coverage of all wood surfaces.
Choose penetrating oil finishes for pressure-treated lumber rather than surface coatings that may peel over time. Reapply the finish annually for continued protection.
Install optional handles on the lid front edge for easier lifting. Handles reduce strain when accessing plants and improve ventilation control during daily operations.
Add eye hooks and corresponding catches to secure the lid during strong winds. Position these closures on both sides of the frame for balanced holding power.
Test all moving parts including hinges, support arms, and closure mechanisms before placing the cold frame in its permanent location.
Proper insulation and weatherproofing transform your cold frame from a basic structure into an efficient growing environment that retains heat and blocks moisture infiltration.
Weather-resistant sealants eliminate heat loss through gaps between timber joints and glazing connections. Apply silicone sealant or exterior-grade caulk to all frame corners where vertical and horizontal boards meet. Focus particularly on the junction between the lid frame and the main body, as this connection experiences the most movement during opening and closing.
Check each glazing panel connection point for gaps larger than 2mm. Remove old putty or sealant before applying fresh material in a continuous bead. Smooth the sealant with a damp finger within 10 minutes of application to create a professional finish that adheres properly to both surfaces.
Test your sealing work by spraying water onto the sealed joints from inside the frame. Any moisture penetration indicates areas requiring additional sealant application. Replace degraded seals annually before winter to maintain optimal performance throughout the coldest months.

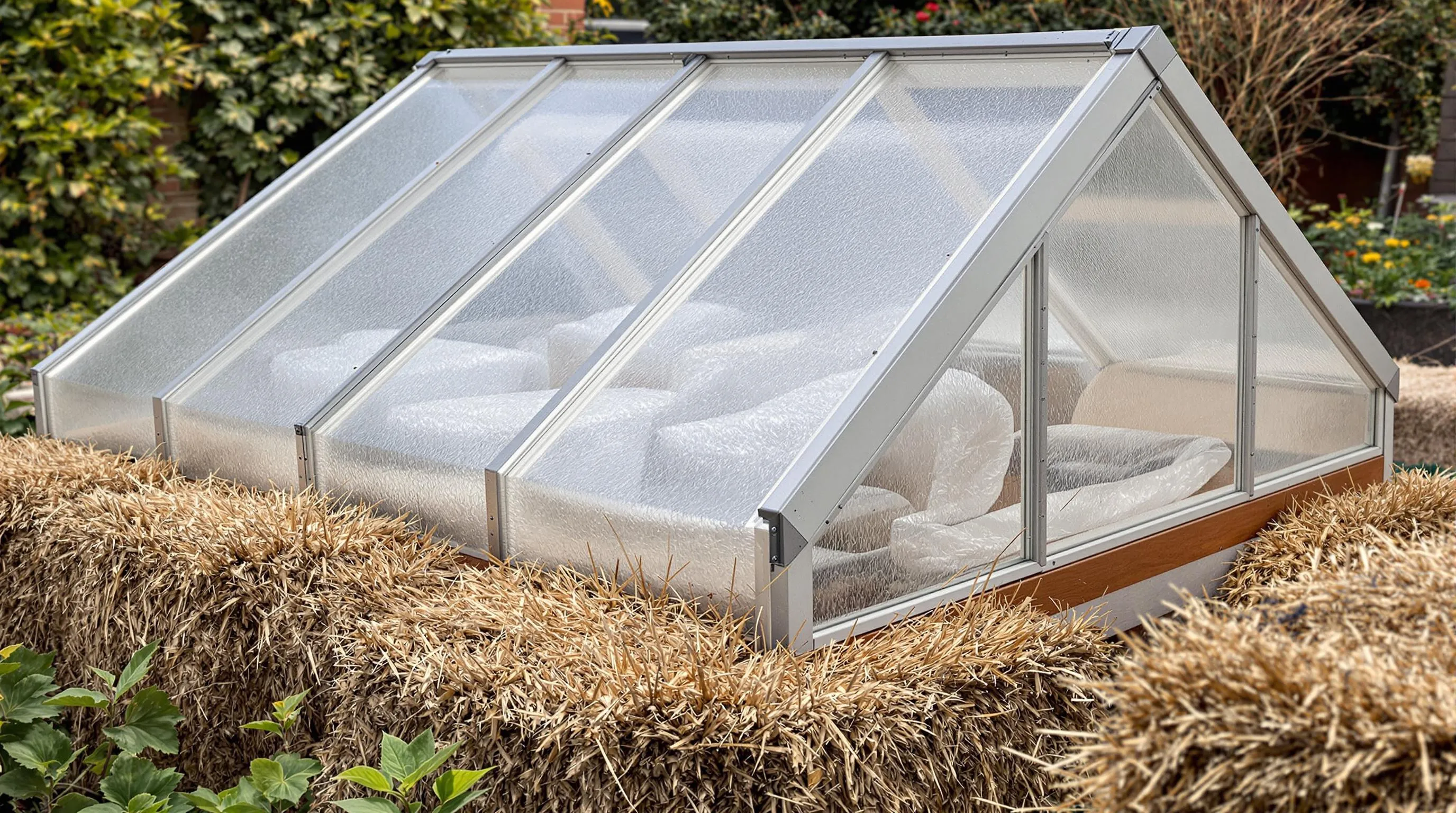

Bubble wrap provides excellent insulation whilst maintaining light transmission through your cold frame glazing. Cut sheets to fit each glass or polycarbonate panel, leaving 5mm gaps around edges for ventilation. Attach using small clips or adhesive strips that remove easily in spring.
Straw bales stacked around the exterior perimeter create natural windbreaks and ground insulation. Position bales 15cm from frame walls to allow air circulation whilst blocking cold drafts. This method proves particularly effective in exposed locations where winter winds reduce internal temperatures significantly.
Polystyrene sheets fitted inside the frame walls boost heat retention by up to 30% during severe cold spells. Cut 25mm thick sheets to fit snugly between internal frame supports. Remove these temporary panels when daytime temperatures exceed 10°C to prevent overheating young plants.
Fleece covers placed over the entire cold frame structure provide emergency protection during unexpected frost warnings. Secure heavyweight horticultural fleece with bungee cords or weighted edges to prevent wind displacement. This additional layer can increase internal temperatures by 3-5°C compared to uncovered frames.
Consider installing automatic vent openers that respond to temperature changes without manual intervention. These devices prevent dangerous overheating whilst maintaining consistent growing conditions during variable spring weather patterns.
Mastering your cold frame transforms it from a simple structure into a year-round gardening powerhouse. Managing ventilation, timing your plantings, and maintaining proper care routines creates optimal growing conditions for plants throughout changing seasons.
Temperature regulation prevents plant damage from overheating or frost exposure. Your cold frame traps heat efficiently but requires active management to maintain temperatures between 4°C and 18°C for optimal plant growth.
Install heat-activated vent openers to automate temperature control. These devices open the lid automatically when internal temperatures reach 15°C and close when temperatures drop to 10°C. Automatic vent openers eliminate manual monitoring and prevent temperature spikes that damage seedlings.
Monitor internal temperatures using a min-max thermometer placed at plant level. Temperatures above 20°C stress cool-season crops like lettuce and spinach, whilst temperatures below 2°C damage tender seedlings even though cold frame protection.
Prop open the lid manually during warm days when temperatures exceed 10°C. Use wooden blocks or adjustable lid stays to create ventilation gaps of 5-10 cm. Close the lid completely when evening temperatures drop below 5°C to retain accumulated daytime heat.
Ventilate gradually during the hardening-off process. Start by opening the lid for 2 hours daily during the warmest part of the day. Increase ventilation time by 1 hour each day over 10-14 days until plants adapt to outdoor conditions.
Spring planting extends your growing season by 6-8 weeks compared to outdoor sowing. Start cold-hardy vegetables in your cold frame when soil temperatures reach 4°C, typically 4-6 weeks before the last frost date.
Use the cold frame for seed starting warm-season crops 4-6 weeks before transplanting. Start tomato seeds in trays during late March when night temperatures stay above 0°C. Pepper seedlings benefit from cold frame protection until soil temperatures reach 15°C outdoors.
Autumn and winter growing maximises cold frame productivity. Plant winter lettuce varieties in September for harvest through December. Overwinter onion sets planted in October establish strong root systems for spring growth.
Create succession plantings every 2-3 weeks for continuous harvests. Sow new lettuce seeds whilst harvesting mature plants to maintain constant productivity throughout the growing season.
Water management in cold frames requires precision to prevent both drought stress and fungal diseases. Plants in cold frames use 30-40% less water than outdoor plantings due to reduced wind exposure and lower evaporation rates.
Check soil moisture daily by inserting your finger 2-3 cm into the growing medium. Water when the top layer feels dry but moisture remains detectable below the surface. Apply water early morning to allow plants to dry before evening temperatures drop.
Use a watering can with a fine rose attachment to distribute water evenly without disturbing seedlings. Apply 1-2 litres per square metre during active growing periods. Reduce watering frequency by 50% during winter months when plant growth slows.
Maintain humidity levels between 60-70% for optimal plant health. Place shallow water dishes inside the cold frame during dry periods. Remove excess moisture by increasing ventilation when humidity exceeds 80%, which encourages fungal growth.
Clean the glazing panels monthly to maximise light transmission. Algae and dirt reduce light levels by up to 25%, slowing plant growth significantly. Use warm soapy water and a soft cloth to avoid scratching polycarbonate or acrylic surfaces.
Apply organic mulch around plants to conserve moisture and suppress weeds. Straw or shredded leaves maintain consistent soil moisture whilst providing insulation during temperature fluctuations. Replace mulch every 6-8 weeks to prevent pest harbourage.
Inspect hinges and hardware quarterly for signs of wear or corrosion. Lubricate vent openers with light machine oil every 3 months to ensure smooth operation. Replace worn components before complete failure disrupts temperature control systems.
Even well-constructed cold frames can encounter problems that affect plant growth and structure integrity. Address these common issues promptly to maintain optimal growing conditions.
Excessive moisture buildup indicates poor ventilation and creates fungal disease conditions. Open the lid 2-3 cm during daytime temperatures above 10°C to promote air circulation. Install automatic vent openers that activate at 15°C to prevent condensation without constant monitoring.
Clean condensation from glazing panels weekly using a soft cloth and mild detergent solution. Remove standing water from the frame base immediately as soggy soil conditions damage root systems and encourage pest problems. Position your cold frame on a slight slope (1-2 degrees) to ensure proper drainage away from plants.
Check door seals and glazing joints for gaps that allow humid air to enter while preventing dry air circulation. Apply weatherproof sealant to problem areas and replace damaged rubber seals around glazing panels. Consider adding small vents (5 cm diameter) near the base of side panels to create cross-ventilation without heat loss.
Overheating damages seedlings faster than cold temperatures in most cases. Monitor internal temperatures using a min-max thermometer placed at plant level. Optimal growing temperatures range from 4-18°C for most cold-hardy crops during winter months.
Prop the lid open 10-15 cm when temperatures exceed 20°C to prevent heat stress and wilting. Install temperature-activated vent arms that automatically open at preset temperatures (typically 15-17°C) for hands-off management during fluctuating weather conditions.
Create thermal mass using water-filled containers or bricks placed inside the frame to moderate temperature swings. These materials absorb excess heat during warm days and release stored warmth during cold nights. Cover the frame with horticultural fleece during severe frost warnings (below -5°C) to provide additional insulation.
Adjust your lid opening schedule based on seasonal changes. Spring operations require more frequent ventilation as daylight hours increase and solar gain intensifies. Monitor weather forecasts and close the lid before temperature drops in late afternoon.
Loose hinges cause improper sealing and heat loss through gaps. Tighten hinge screws every 3 months and replace screws that strip from repeated use. Apply marine-grade grease to hinge pins twice yearly to prevent rust and ensure smooth operation.
Inspect timber joints for splitting or separation caused by moisture expansion and contraction. Fill small cracks with exterior wood filler and sand smooth when dry. Replace boards showing significant rot or structural weakness before they compromise frame stability.
Check glazing panel security monthly as wind and temperature changes can loosen mounting hardware. Tighten glazing clips and replace cracked panels immediately to maintain insulation properties. Clean glazing supports and apply silicone sealant to prevent water infiltration around panel edges.
Examine the frame base for soil contact damage and apply additional wood preservative to affected areas. Raise the frame slightly using treated timber blocks if ground moisture causes persistent wood deterioration. Re-seal all timber surfaces annually using exterior-grade wood stain or preservative to extend structural lifespan.
Building your own cold frame opens up exciting possibilities for year-round gardening success. You’ll enjoy fresh vegetables and thriving seedlings even when winter weather would normally halt your growing efforts.
Your investment in time and materials will pay dividends through extended harvests and stronger plants. The skills you’ve developed during construction will serve you well for future garden projects too.
Remember that maintenance and proper positioning are just as crucial as the initial build quality. With regular care and attention to seasonal adjustments your cold frame will provide reliable service for many growing seasons ahead.
Start planning your next crop rotation now – you’re about to discover just how rewarding protected cultivation can be.
A cold frame is a 5-sided wooden structure with a transparent sloped lid that acts as a miniature greenhouse. It captures sunlight and traps warm air to create a protective microclimate for plants. The sloped design maximises solar gain whilst providing proper drainage, allowing gardeners to extend their growing season by 6-8 weeks even during harsh winter conditions.
You’ll need pressure-treated lumber for the frame, decking screws, hinges, and metal brackets for structural support. For glazing, choose from reclaimed windows, polycarbonate sheets, or corrugated plastic panels. Essential tools include a cordless drill, jigsaw, measuring tape, and safety equipment. The project requires minimal carpentry skills and uses inexpensive, readily available materials.
Place your cold frame in a south-facing location that receives 6-8 hours of direct sunlight daily. Ensure the area has well-draining soil with a slight slope away from the back panel to prevent water pooling. Position it within 10 metres of your house for easy maintenance and to benefit from reflected heat and wind protection.
Standard dimensions of 150 x 70 cm work well for most gardeners, accommodating 12-15 seed trays or 20-25 individual plants. The depth should be 20-30 cm depending on your crops. Larger frames suit extensive growing plans, whilst compact versions are ideal for smaller spaces. The lid angle should be 30 degrees for optimal drainage and solar gain.
Seal all gaps and joints with weather-resistant sealant to prevent heat loss and moisture infiltration. Check glazing panel connections regularly for gaps. Add insulation using bubble wrap, straw bales, or polystyrene sheets around the frame. Use fleece covers for emergency frost protection and consider installing automatic vent openers for optimal temperature control.
In spring, start seedlings and grow lettuce, radishes, and herbs. During autumn and winter, cultivate hardy vegetables like kale, spinach, winter salads, and root vegetables. Practice succession planting for continuous harvests. The cold frame protects tender plants during harsh weather whilst improving their resilience for outdoor transplanting.
Install heat-activated vent openers to automatically adjust the lid and prevent overheating. Monitor internal temperatures regularly and manually open the lid during warm days. The sloped design aids natural air circulation. Ensure proper ventilation to prevent condensation buildup and maintain optimal growing conditions throughout different seasons.
Common issues include excessive condensation, temperature regulation problems, and structural wear. Combat condensation with proper ventilation and regular cleaning of glazing panels. Manage overheating with automatic vent openers and create thermal mass for temperature moderation. Regularly inspect and maintain hinges, timber joints, and glazing panel security for optimal performance.
